HaveMail is a web administration for virtual mailboxes in Postfix and Dovecot.

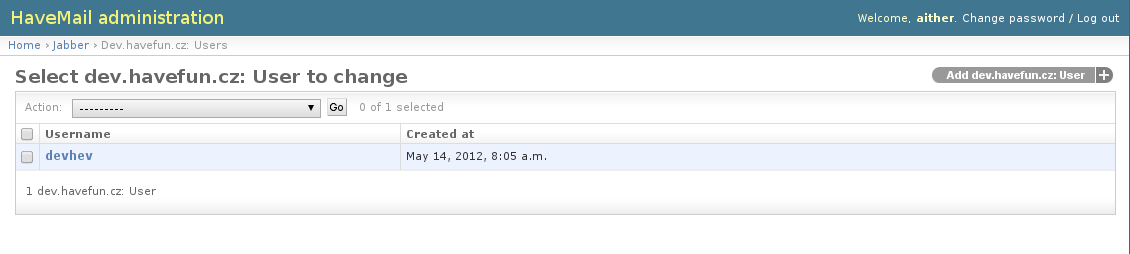

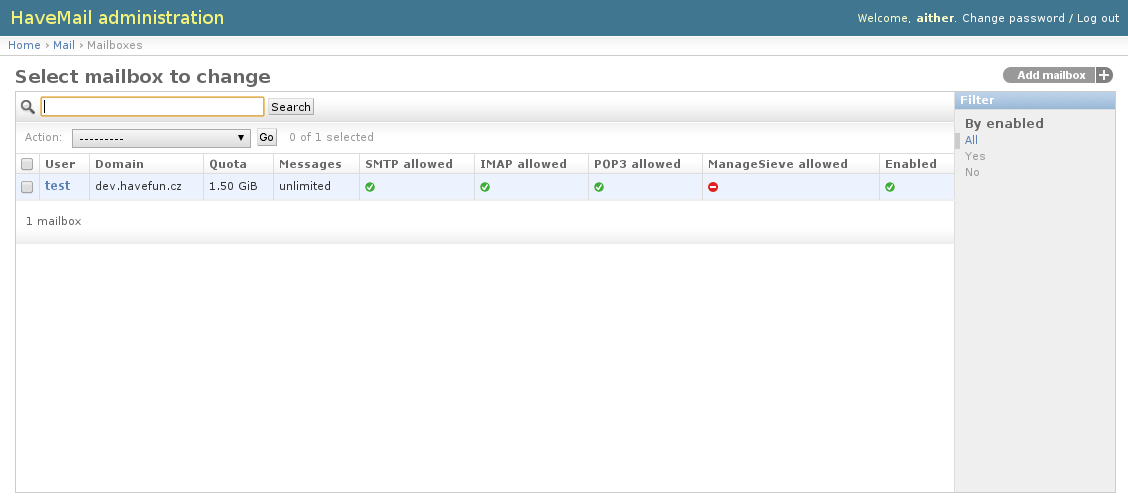

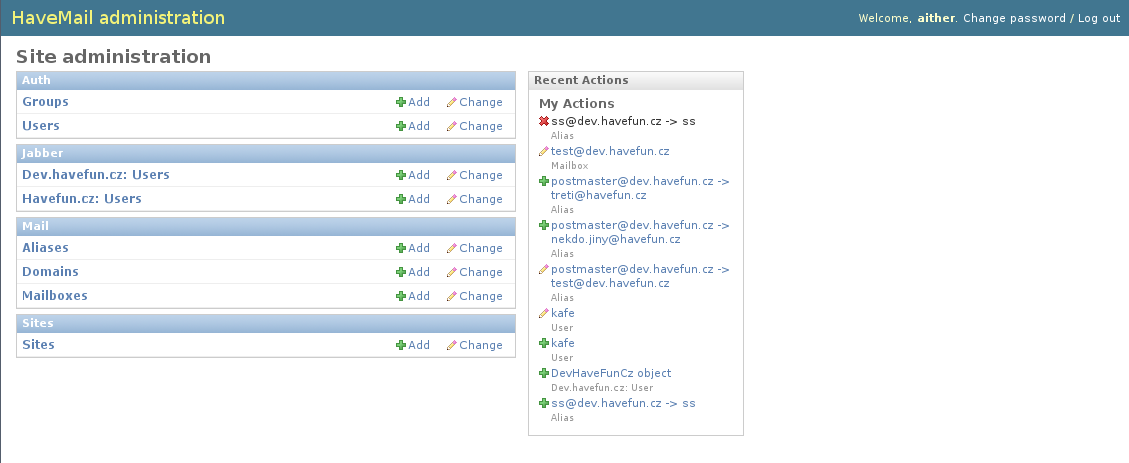

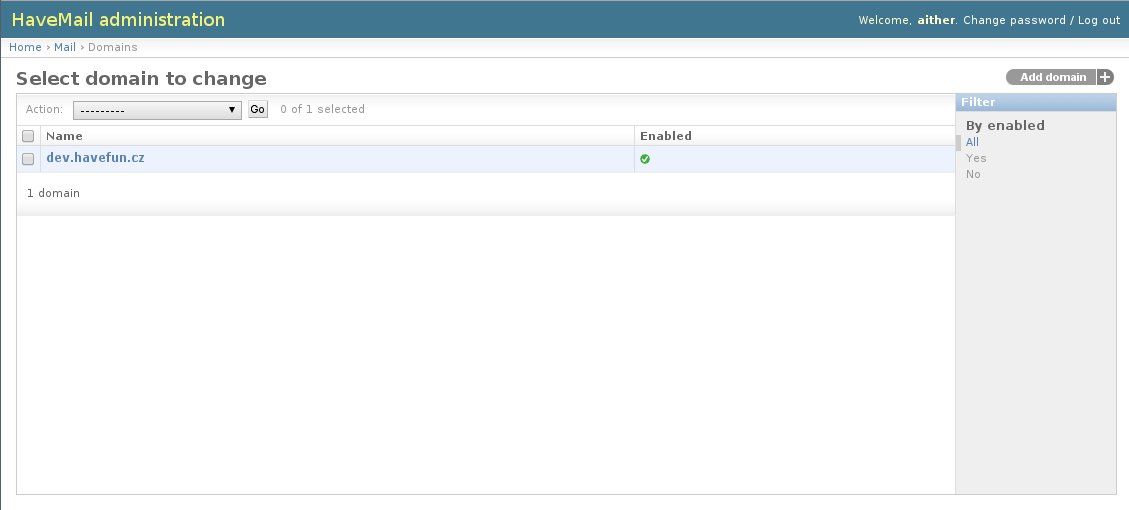

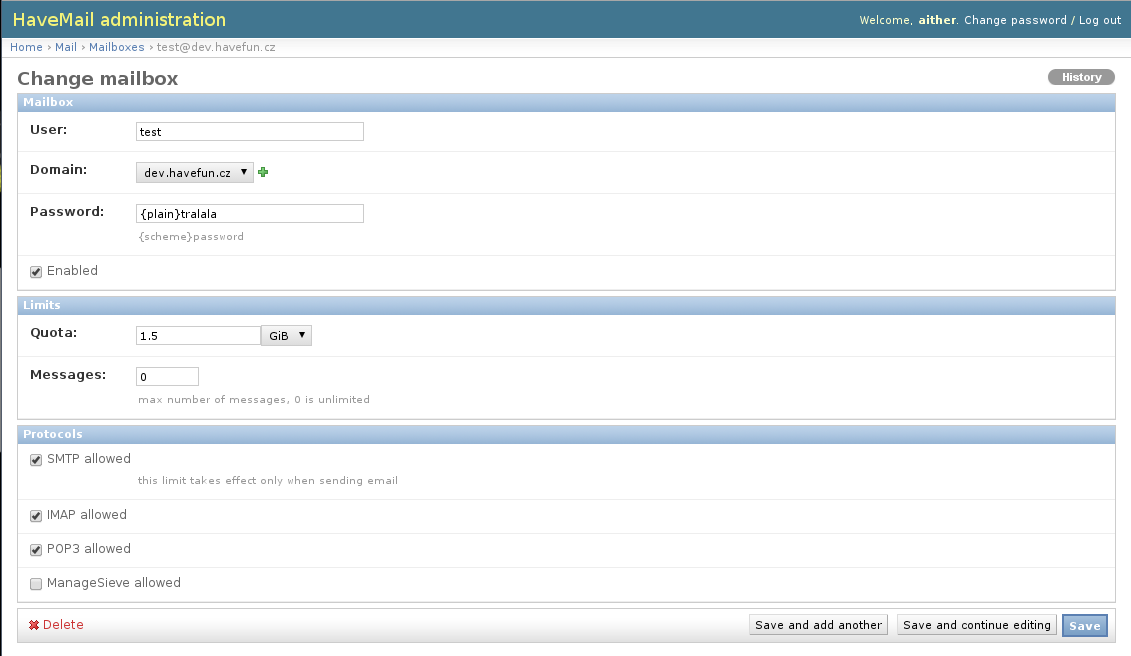

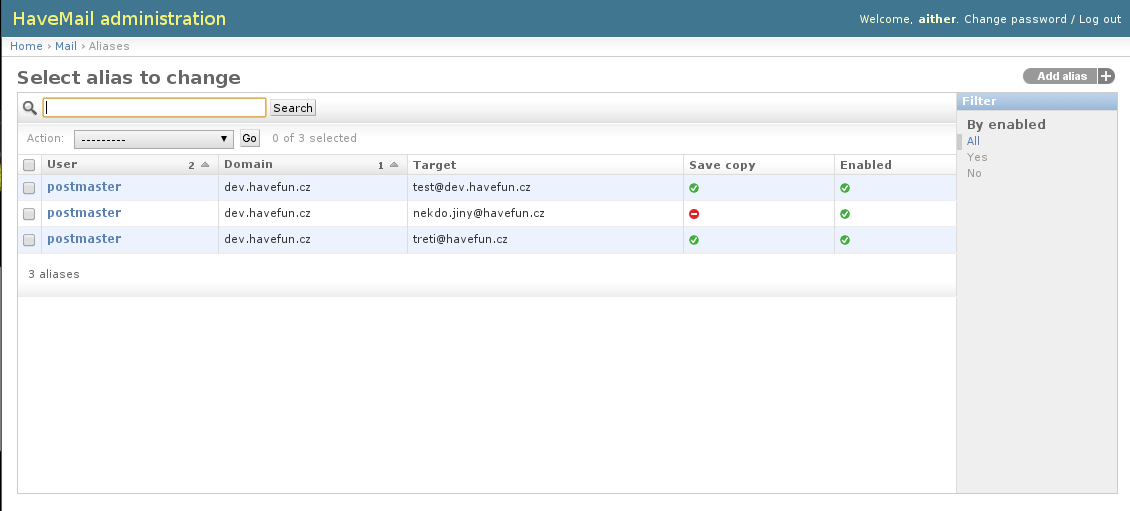

Screenshots
Features
- Manage mail domains, quick enable/disable
- Manage mailboxes for domains
- Quota, message number limit
- Enable/Disable SMTP, POP3, IMAP and ManageSieve
- Aliases
- Autoconfiguration in Thunderbird as described here
- Manage users in a database for ejabberd, support for multiple domains
Configuration
This configuration should work in RHEL6. These examples show only how to connect Postfix and Dovecot with HaveMail, this is not a complete mail server setup.
Create tables in database:
CREATE TABLE IF NOT EXISTS `mail_alias` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`domain_id` int(11) NOT NULL,
`user` varchar(100) COLLATE utf8_czech_ci NOT NULL,
`target` varchar(100) COLLATE utf8_czech_ci NOT NULL,
`save_copy` tinyint(1) NOT NULL DEFAULT '1',
`enabled` tinyint(1) NOT NULL DEFAULT '1',
PRIMARY KEY (`id`),
KEY `alias_ibfk_1` (`domain_id`)
) ENGINE=InnoDB;
CREATE TABLE IF NOT EXISTS `mail_domain` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(100) COLLATE utf8_czech_ci NOT NULL,
`enabled` tinyint(1) NOT NULL DEFAULT '1',
PRIMARY KEY (`id`),
UNIQUE KEY `name` (`name`)
) ENGINE=InnoDB;
CREATE TABLE IF NOT EXISTS `mail_mailbox` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`domain_id` int(11) NOT NULL,
`user` varchar(100) COLLATE utf8_czech_ci NOT NULL,
`password` varchar(100) COLLATE utf8_czech_ci NOT NULL,
`quota` bigint(11) NOT NULL DEFAULT '10240',
`messages` bigint NOT NULL,
`smtp_allowed` tinyint(1) NOT NULL DEFAULT '1',
`imap_allowed` tinyint(1) NOT NULL DEFAULT '1',
`pop3_allowed` tinyint(1) NOT NULL DEFAULT '1',
`sieve_allowed` tinyint(1) NOT NULL DEFAULT '1',
`enabled` tinyint(1) NOT NULL DEFAULT '1',
PRIMARY KEY (`id`),
UNIQUE KEY `domain_id` (`domain_id`,`user`)
) ENGINE=InnoDB;
ALTER TABLE `mail_alias`
ADD CONSTRAINT `alias_ibfk_1` FOREIGN KEY (`domain_id`) REFERENCES `mail_domain` (`id`) ON DELETE CASCADE ON UPDATE CASCADE;
ALTER TABLE `mail_mailbox`
ADD CONSTRAINT `mailbox_ibfk_1` FOREIGN KEY (`domain_id`) REFERENCES `mail_domain` (`id`) ON DELETE CASCADE ON UPDATE CASCADE;
Create users for Postfix, Dovecot and HaveMail:
GRANT SELECT ON mail_domain TO 'postfix'@'localhost' IDENTIFIED BY 'password';
GRANT SELECT (id, domain_id, user, enabled) ON mail_mailbox TO 'postfix'@'localhost';
GRANT SELECT (id, domain_id, user, target, save_copy, enabled) ON mail_alias TO 'postfix'@'localhost';
GRANT SELECT ON mail_domain TO 'dovecot'@'localhost' IDENTIFIED BY 'password';
GRANT SELECT (id, domain_id, user, password, quota, messages, smtp_allowed, imap_allowed, pop3_allowed, sieve_allowed, enabled) ON mail_mailbox TO 'dovecot'@'localhost';
GRANT USAGE ON *.* TO 'havemail'@'localhost' IDENTIFIED BY 'password';
GRANT ALL PRIVILEGES ON `mail`.* TO 'havemail'@'localhost';
Postfix
Edit /etc/postfix/main.cf and set:
virtual_mailbox_domains = proxy:mysql:/etc/postfix/mysql/vdomains.cf
virtual_mailbox_maps = proxy:mysql:/etc/postfix/mysql/vmailbox.cf
virtual_alias_maps = proxy:mysql:/etc/postfix/mysql/virtual.cf
Now create those files:
mkdir /etc/postfix/mysql
/etc/postfix/mysql/domains.cf:
hosts = unix:/var/lib/mysql/mysql.sock
user = postfix
password = password
dbname = mail
query = SELECT 1 FROM mail_domain WHERE name='%s' AND enabled=1
/etc/postfix/mysql/vmailbox.cf:
hosts = unix:/var/lib/mysql/mysql.sock
user = postfix
password = password
dbname = mail
query = SELECT CONCAT(d.name, '/', mb.user, '/')
FROM mail_mailbox mb INNER JOIN mail_domain d ON mb.domain_id = d.id
WHERE mb.enabled=1 AND d.enabled=1 AND mb.user='%u' AND d.name='%d'
/etc/postfix/mysql/virtual.cf:
hosts = unix:/var/lib/mysql/mysql.sock
user = postfix
password = password
dbname = mail
query = SELECT a.target FROM mail_alias a INNER JOIN mail_domain d ON a.domain_id = d.id
WHERE a.enabled=1 AND d.enabled=1 AND a.user='%u' AND d.name='%d'
UNION
SELECT CONCAT(a.user, '@', d.name) AS target FROM mail_alias a INNER JOIN mail_domain d ON a.domain_id = d.id
WHERE a.enabled=1 AND d.enabled=1 AND a.user='%u' AND d.name='%d' AND save_copy=1
Dovecot
/etc/dovecot/conf.d/acl-dict-sql.conf.ext:
connect = host=/var/lib/mysql/mysql.sock dbname=mail user=dovecot password=password
map {
table = acls
pattern = shared/shared-boxes/user/$to/$from
value_field = valid
fields {
mbfrom = $from
mbto = $to
}
}
map {
pattern = shared/shared-boxes/anyone/$from
table = anyone_shares
value_field = valid
fields {
mbfrom = $from
}
}
/etc/dovecot/conf.d/auth-sql.conf.ext:
connect = host=/var/lib/mysql/mysql.sock dbname=mail user=dovecot password=password
passdb {
driver = sql
args = /etc/dovecot/dovecot-sql.conf.ext
}
userdb {
driver = prefetch
}
# This is for LDA, since prefetch itself is not enough
userdb {
driver = sql
args = /etc/dovecot/dovecot-sql.conf.ext
}
/etc/dovecot/dovecot-sql.conf.ext:
default_pass_scheme = PLAIN
driver = mysql
connect = host=/var/lib/mysql/mysql.sock dbname=mail user=dovecot password=password
password_query = SELECT mb.password AS password, '%u' AS user, \
200 AS userdb_uid, 200 AS userdb_gid, '/var/mail/virtual/%d/%n' AS userdb_home, \
CONCAT('*:storage=', quota, 'k') AS userdb_quota_rule, \
CONCAT('*:messages=', messages) AS userdb_quota_rule2 \
FROM mail_mailbox mb INNER JOIN mail_domain d ON mb.domain_id = d.id \
WHERE mb.enabled = 1 AND %s_allowed = 1 \
AND d.enabled = 1 AND mb.user = '%n' AND d.name = '%d'
user_query = SELECT 200 AS uid, 200 AS gid, '/var/mail/virtual/%d/%n' AS home, \
CONCAT('*:storage=', quota, 'k') AS quota_rule, \
CONCAT('*:messages=', messages) AS quota_rule2 \
FROM mail_mailbox mb INNER JOIN mail_domain d ON mb.domain_id = d.id \
WHERE mb.enabled = 1 AND d.enabled = 1 AND mb.user = '%n' AND d.name = '%d' AND d.name = '%d'
HaveMail
Edit settings.py – configure database, TEMPLATE_DIRS, MAIL_PROTOCOLS and JABBER_DOMAINS. Databases for ejabberd needs to be created manually.
License
HaveMail is released under GNU/GPL.
Used technologies
Written in Python with Django framework, MySQL.
Download
https://secure.havefun.cz/~aither/pub/releases/havemail.tar.gz
